Automatic Solar tracker Single-Axis solar tracking system
1. Increased Energy Production
By continuously tracking the sun's movement, an automatic solar tracker ensures that the solar panels are always oriented optimally. This results in increased energy production compared to fixed solar panels, especially during the morning and evening hours when the sun is at a lower angle.
2. Maximizing Return on Investment
With increased energy production and efficiency, an automatic solar tracker can help maximize the return on investment for solar installations. By generating more electricity, the tracker allows for quicker payback periods and increased savings on energy bills.
- Lester
- China
- 14 weekdays
- Hot dip galvanizing+magnesium aluminum zinc plating
- 10Years
- Information

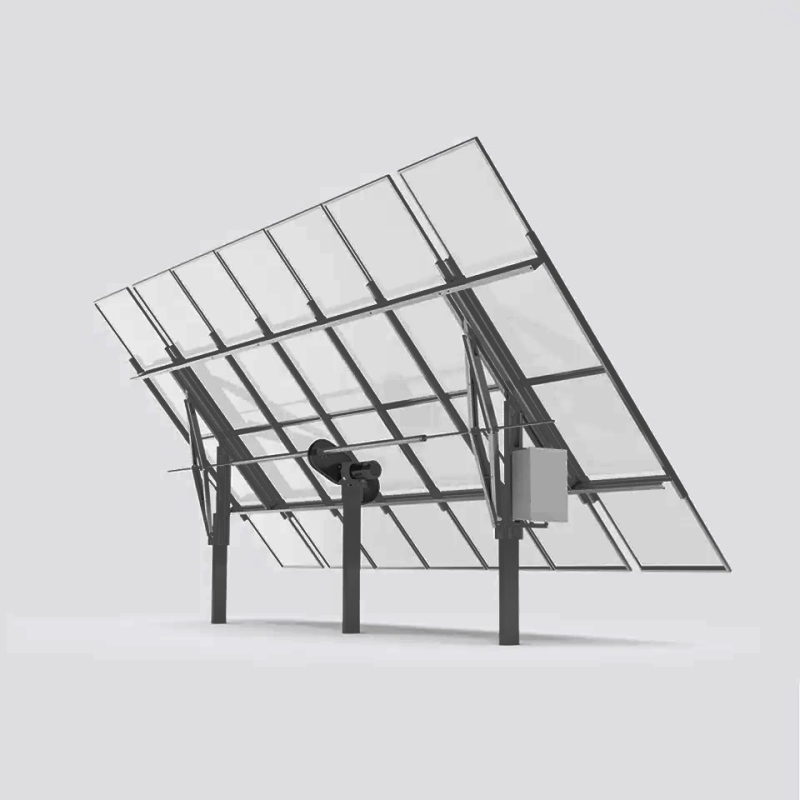

LST TRACKER SINGLE-AXIS SOLAR TRACKING SYSTEM
Product Description
LST Tracker Intelligent single axis tracking system is a cost-effective product designed for large power plants and has been widely used in low
latitude areas. It adopts a unique linkage structure and maintenance-free rotary bearings, which have the characteristics of high reliability, low
failure rate, and low maintenance cost. Compared to traditional supports, it can increase annual power generation by 10%~20%, making it an
ideal choice for large-scale power station construction.
TECHNICAL PARAMETER | |
GPS module | Automatically obtain longitude, latitude, and precise time, compatible with GPS+Beidou satellite positioning system |
Tracking angle | ± 45 ° or ± 60 ° or customized |
Wind resistance | 47m/s design standard: ASCE7-10,<18m/s (wind shelter) |
Tracking algorithm
| Astronomical algorithm+inclination sensor, tracking accuracy of ± 1 degree |
Drive device | Rotary drive, 24V DC motor |
Power supply form | Self powered/external connection |
Communication method | LoRa wireless communication or 485 bus (Modbus protocol) |
Supported modes | Strong wind protection, night return mode |
Rain cleaning mode | |
Snow removal mode on snowy days | |
Transmission mode | Cyclotron reduction device |
Support material | Hot dip galvanizing+magnesium aluminum zinc plating |
Control system | singlechip |
Protection level | IP65 |
System warranty | 10 years |
Daily power consumption of the system | ≤0.1Kwh |
