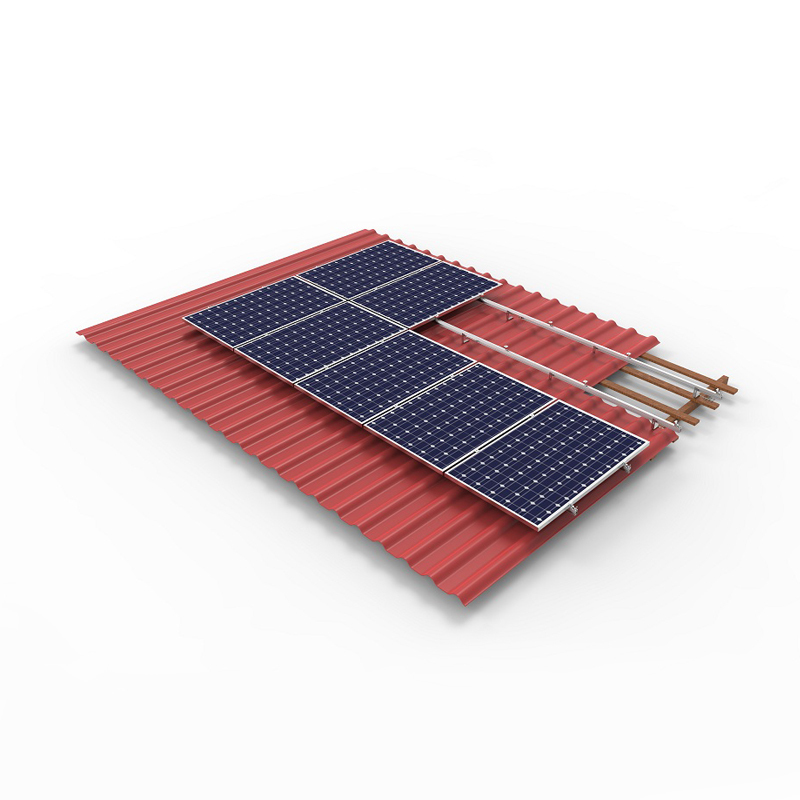

Tile Roof Hook Solar Mounting System
The design of the ceramic tile roof support system has great flexibility. It is suitable for installing framed and frameless components onto sloping roofs.
The system product has innovative track and D-type card block design, making installation more convenient and fast. Highly pre assembled and customized solutions save you installation time and cost.
- Lester
- China
- 14 weekdays
- 2MW/Week
- AL6005-T5/sus304
- 10 Years
- 25 Years
- Information
PRODUCT DETAIL
▋FEATURES
[Economically Efficient]
Installing with hooks is an economical and simple option. Stainless steel hooks are usually used to secure the roof solar panel in place. This allows sufficient air circulation at the bottom of the panel to keep solar panels cool and operate at maximum efficiency.
[Convenient and safe]
The iconic curves of hooks help them resist expansion, products resist buckling, and safely and effectively transfer loads into the building structure. Roof hook’s excellent scalability reduces the number of necessary roof accessories, thereby reducing material costs and installation time.
[Strong adaptability]
The hook of the photovoltaic tile roof mounting system is made of stainless steel SUS 304 and treated to prevent structural corrosion and improve overall aesthetics. Each component is designed to adapt to the structure and environmental conditions specific to your geographical region.
TECHNICAL PARAMETER | |
Max wind speed | 45m/s |
Snow load | 0.8KN/m2 |
Span range | 0.1-1.8m |
Standard length of pressing block | 40mm |
Design standard | AS/NZS1170 ASCE 7-05 DIN1044, etc |
PERFORMANCE PARAMETER | |
Installation site | porcelain tile roof |
Main material | AL6005-T5/sus304 |
Fastener material | SUS304 |
Applicable components | Framed or frameless |
Applicable layout method | vertical or horizontal |
Warranty period | 10 years |
INSTALLATION INSTRUCTIONS

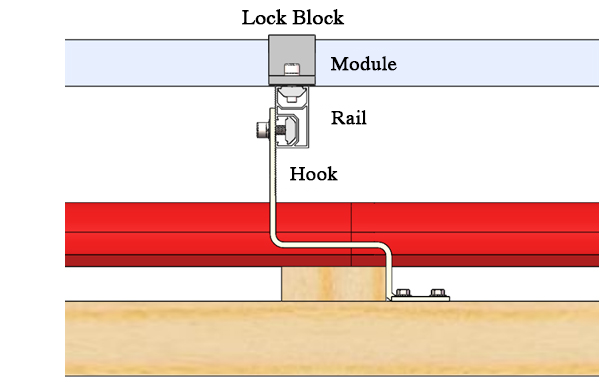

1、 Installing the hook

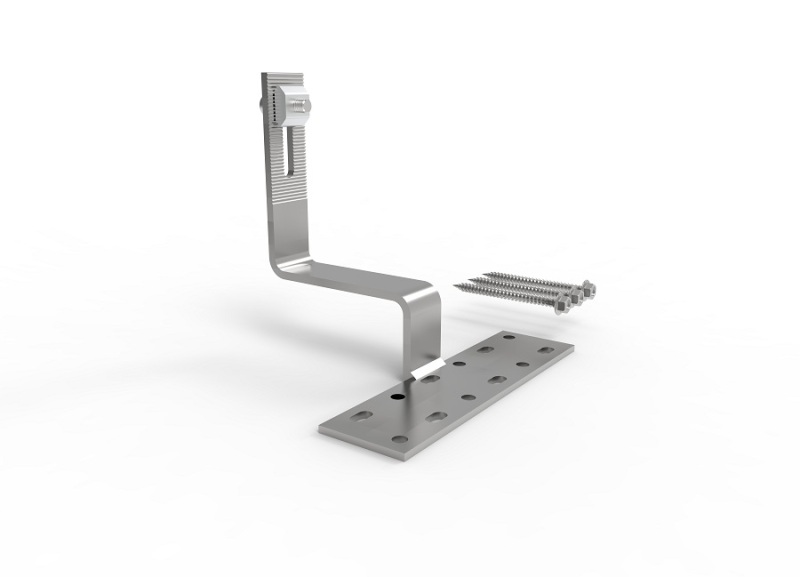

Remove the tiles and fix the hook to the roof beam with wooden screws

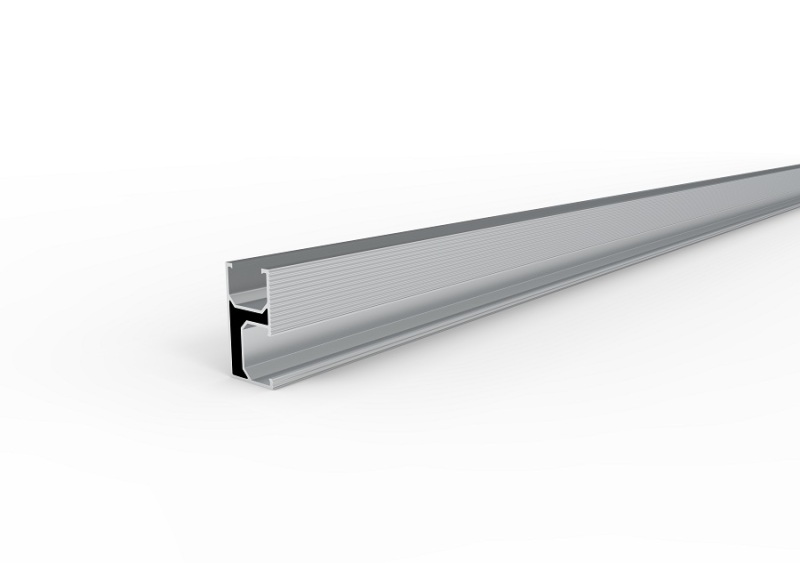

2、 Installation track

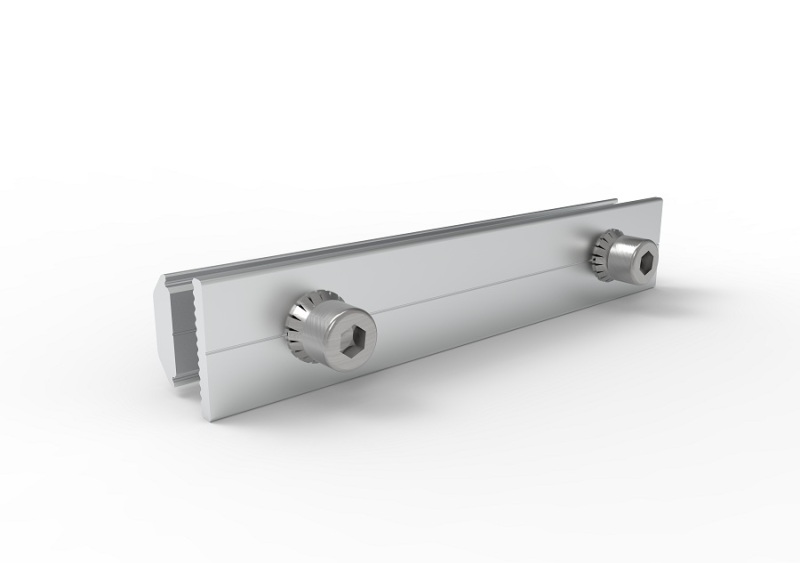

Slide the rail inward against the clamp on the hook, adjust the distance, lock the studs, and secure the rail. If the track length is not enough, connect multiple tracks together through track connectors.
3、 Install components

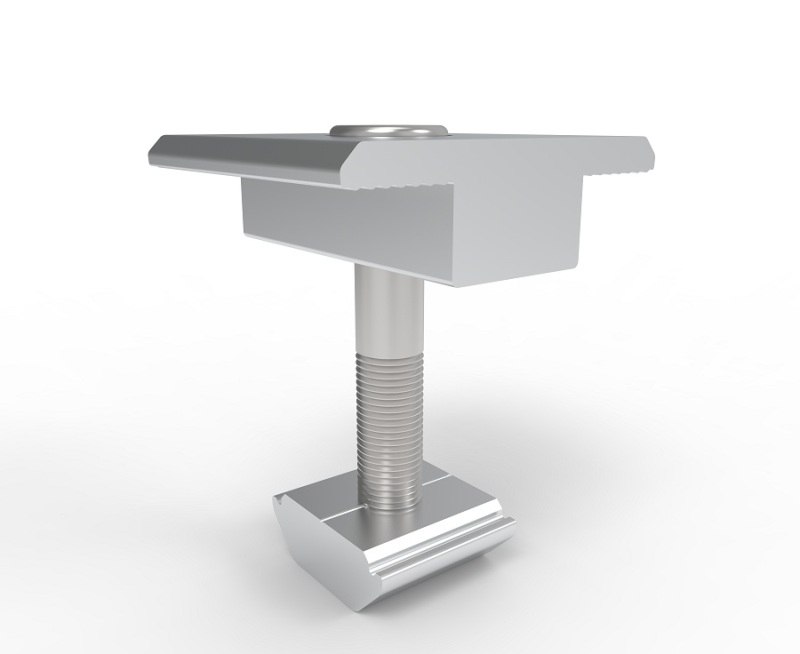

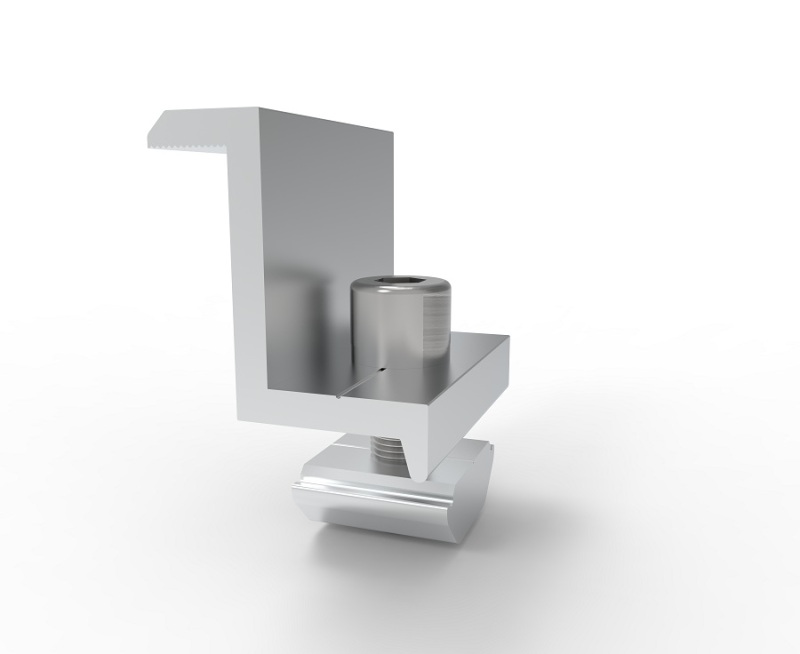

Secure the assembly to the track using side pressure and medium pressure.
