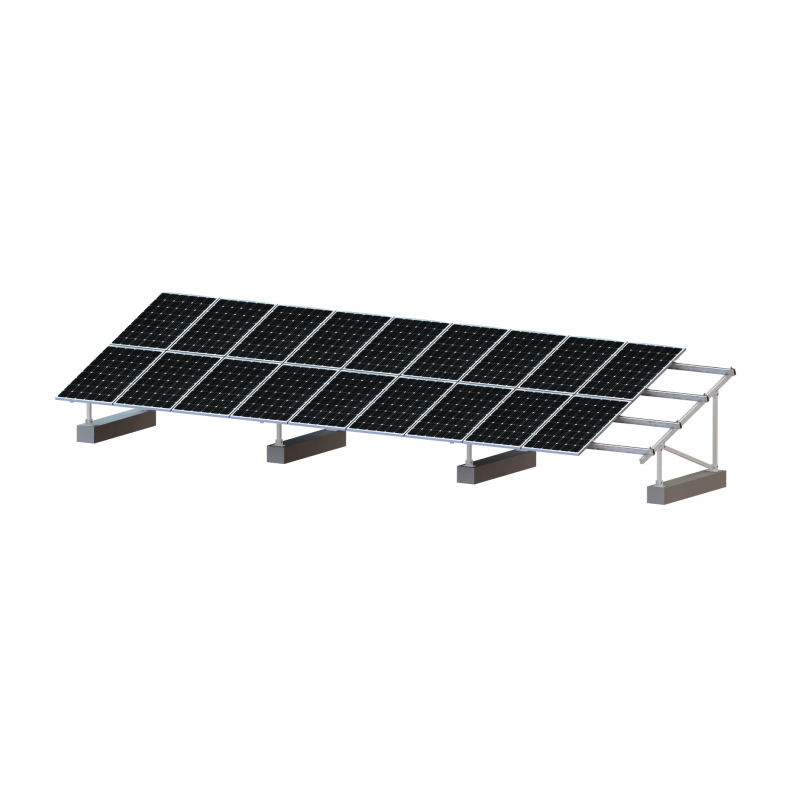

Aluminum Solar Panel Ground Mounting Bracket

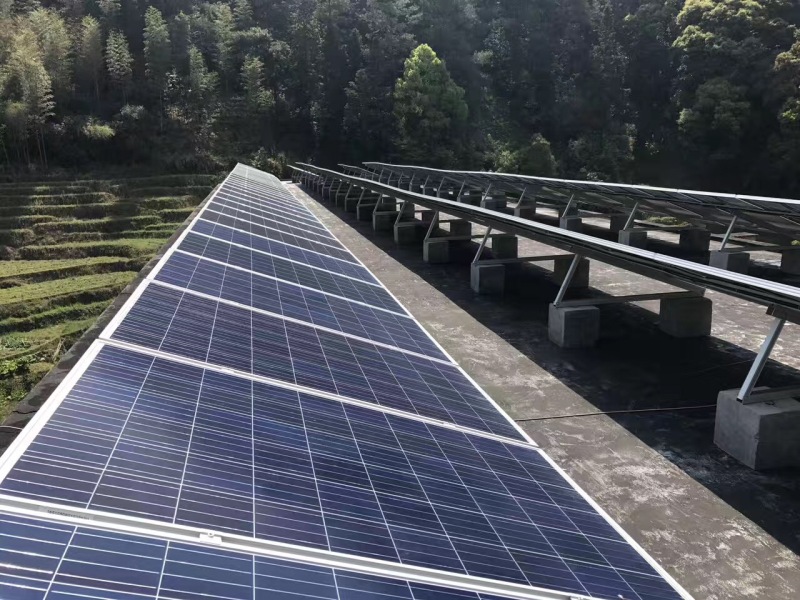

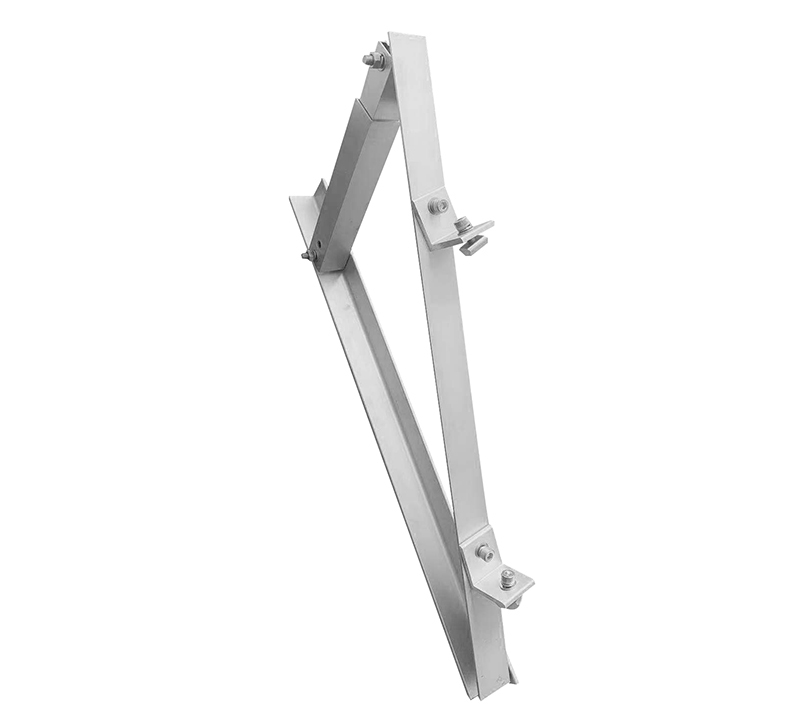

The aluminum ground support system is made of aluminum and can be installed on a concrete foundation or spiral ground pile. It is suitable for open ground and can be installed on a cement flat roof if conditions permit. It is characterized by light weight, strong structure, and recyclable materials.
The aluminum floor bracket is pre installed when leaving the factory. During installation, the rail components can be installed by directly expanding the bracket system. There are fewer on-site installation procedures, effectively improving installation efficiency.
- Lester
- China
- 14 weekdays
- 2MW/Week
- AL6005-TH
- 10 Years
- 20 Years
- Information
Product Detail
PRODUCT DESCRIPTION |
Aluminium solar panel brackets provides excellent design flexibility, high-strength materials, excellent corrosion resistance, high compatibility, and high pre assembly performance. Aluminum materials maximize stiffness and strength, while reducing the assembly and manufacturing of parts; All of these help to reduce costs. Aluminum can also simplify the handling and transportation of the entire supply chain, thereby reducing weight. Aluminum is very durable, almost maintenance free, and 100% recyclable.These characteristic make aluminum solar mounting brackets the best choice, making them perfect for installation in both homes and commercial structures. |
PRODUCT FEATURES：
◆ High strength structure with good performance
◆ Reasonable cost and fast system installation
◆ Excellent corrosion resistance and easy processing
◆ Good compatibility, pre installed height
◆ Simple and economical recycling
TECHNICAL PARAMETER | |
| Max wind speed | 52m/s |
| Snow load | 1.5KN/m2 |
| Span range | 2.5-3.8m |
| System installation angle deviation | ± 2 ° |
| Design standard | AS/NZS1170 ASCE 7-05 DIN1044, etc |
PERFORMANCE PARAMETER | |
| Installation site | flat roof or horizontal ground |
| Main material | AL6005-TH |
| Fastener material | SUS304 |
| Applicable components | Framed or frameless |
| Applicable layout method | vertical or horizontal |
| Warranty period | 10 years |
INSTALLATION INSTRUCTIONS
1. Installing the aluminum bracket
Expand the pre assembled ground aluminum bracket, install the bracket on the cement foundation with embedded bolts, align the bracket within the entire unit, and tighten the bolts.
2. Installation of ground rails

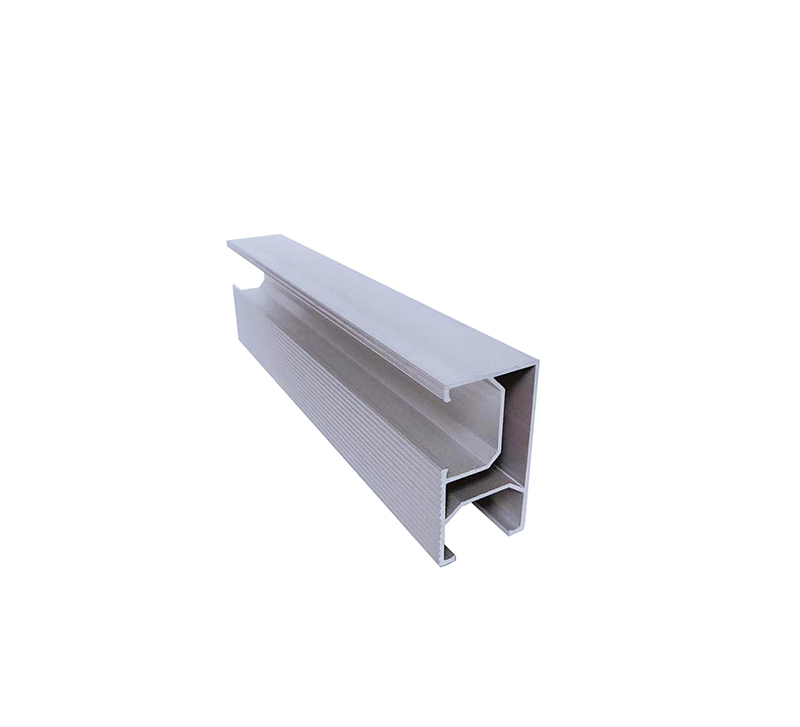

Lay the ground track flat on the longitudinal beam of the aluminum bracket, adjust the position of the track, and fix it on the aluminum bracket with a track pressing block.

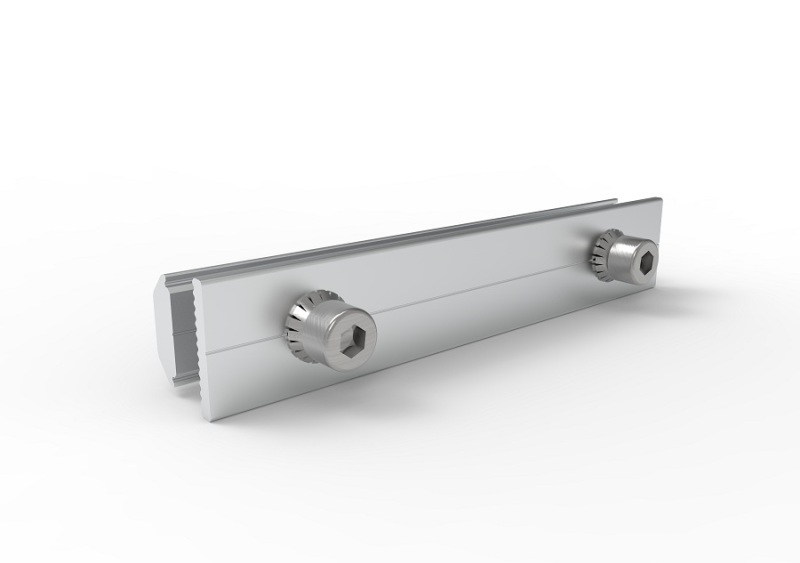

If the track length is insufficient, multiple tracks should be connected together through track connectors.
3. Install components

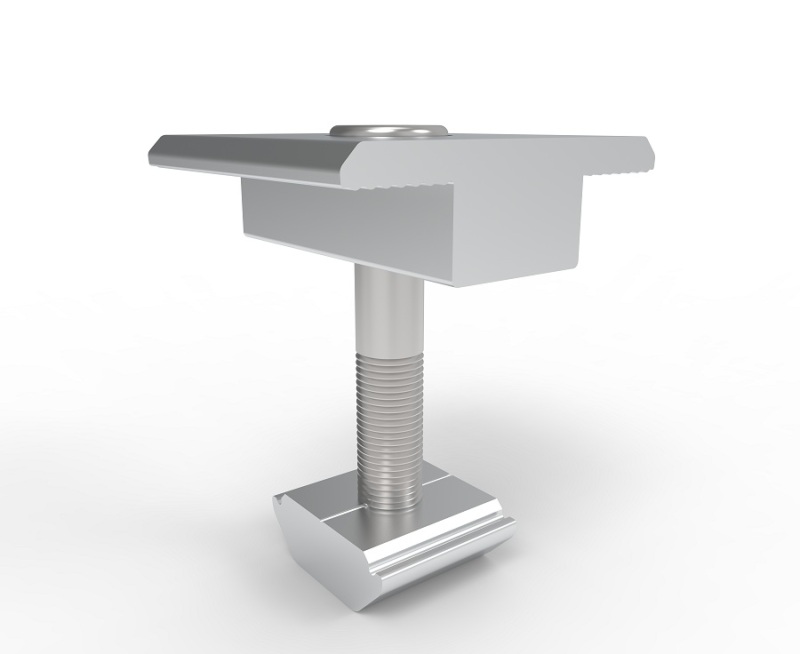

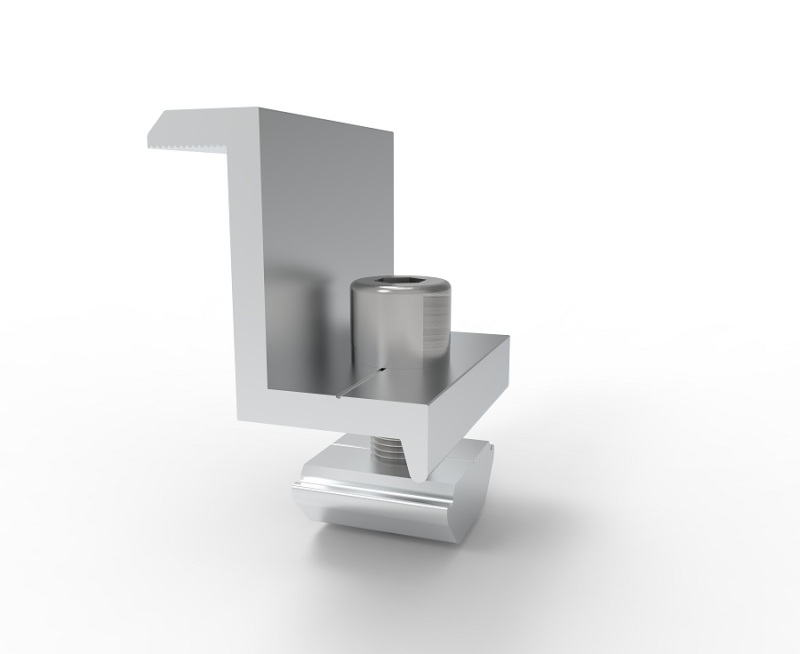

Lay the assembly flat on the track, adjust the dimensions, and fix the assembly with side pressure blocks and medium pressure blocks.
