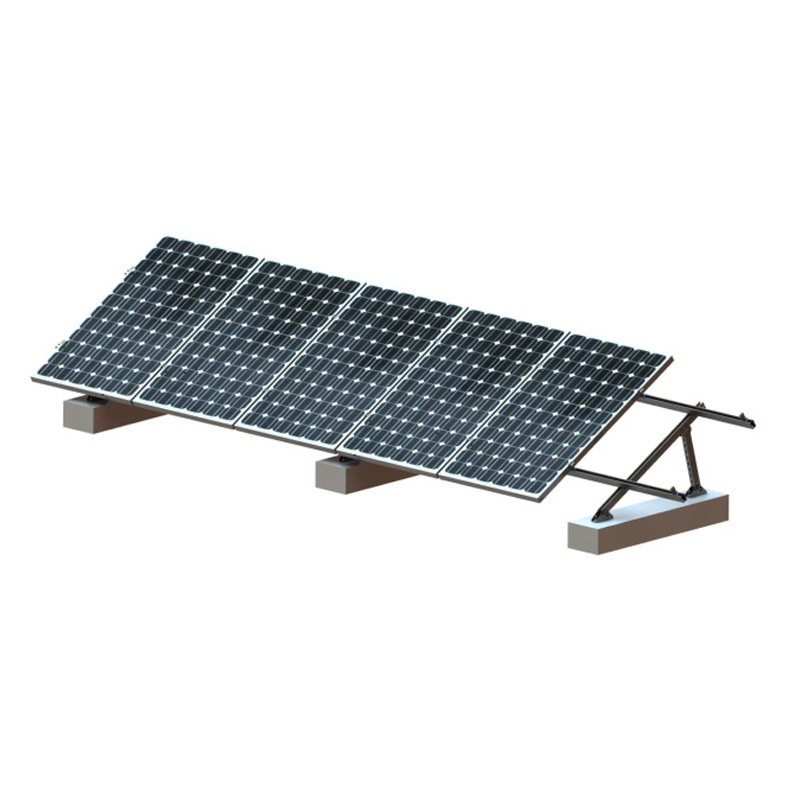

Galvanized Carbon Steel Ground Support Mounting System

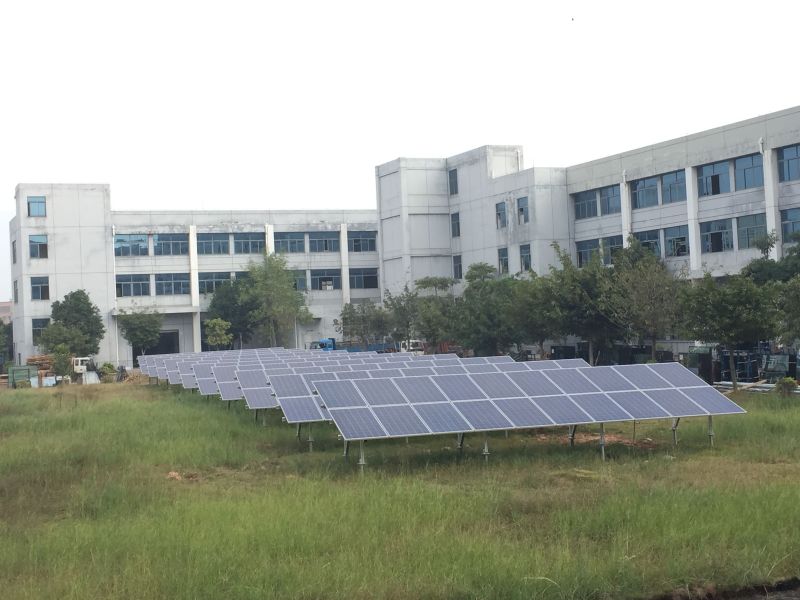

The carbon steel solar panel support bracket is suitable for wide horizontal ground. The pv support bracket uses hot-dip galvanized carbon steel materials, so the overall stability of the support is strong, and the ability to resist wind and snow is strong.

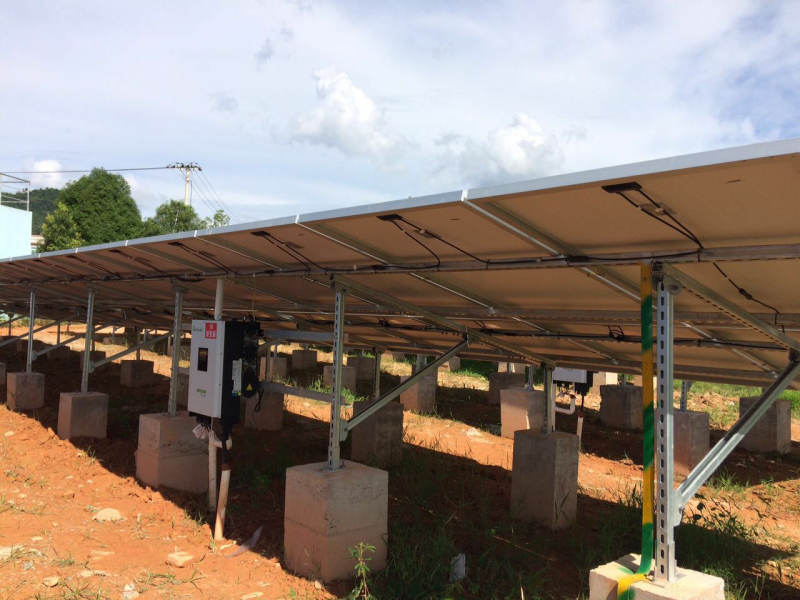

For different foundation solutions, the support system can be fixed to the cement foundation through embedded anchor bolts or directly fixed to the ground through screw ground piles. The system is flexible in design, diverse in structure, and widely applicable.
- Lester
- China
- 14 weekdays
- 2MW/Week
- Q235B
- AS/NZS1170 ASCE 7-05 DIN1044 GB50797-2012 GB 50017-2003 Code for Design of Steel Structures
- 10 Years
- 20 Years
- Information
PRODUCT DETAIL
TECHNICAL PARAMETER | |
| Max wind speed | 52m/s |
| Snow load | 1.5KN/m2 |
| Span range | 0.6-3.2m |
| System installation angle deviation | ± 2 ° |
| Design standard | AS/NZS1170 ASCE 7-05 DIN1044 GB50797-2012 GB 50017-2003 Code for Design of Steel Structures, etc |
PERFORMANCE PARAMETER | |
| Installation site | Flat roof or horizontal ground |
| Main material | Q235B |
| Fastener material | SUS304 or hot-dip galvanized steel |
| Applicable components | Framed or frameless |
| Applicable layout method | Vertical or horizontal |
| Warranty period | 10 years |
PRODUCT FEATURES
1. Strong compatibility
The carbon steel solar panel bracket can meet the installation requirements of photovoltaic modules of different specifications. Compatible with different layout methods of components.
2. Safe and reliable
The carbon steel pv support bracket mainly uses hot-dip galvanized carbon steel materials to effectively prevent corrosion and oxidation. The overall structural stability of the support is good, wind resistance, snow resistance, strong earthquake resistance, and safe and reliable.
3. Low price
The main material of the carbon steel bracket is hot-dip galvanized carbon steel, which has significant advantages over traditional aluminum alloy in terms of price.

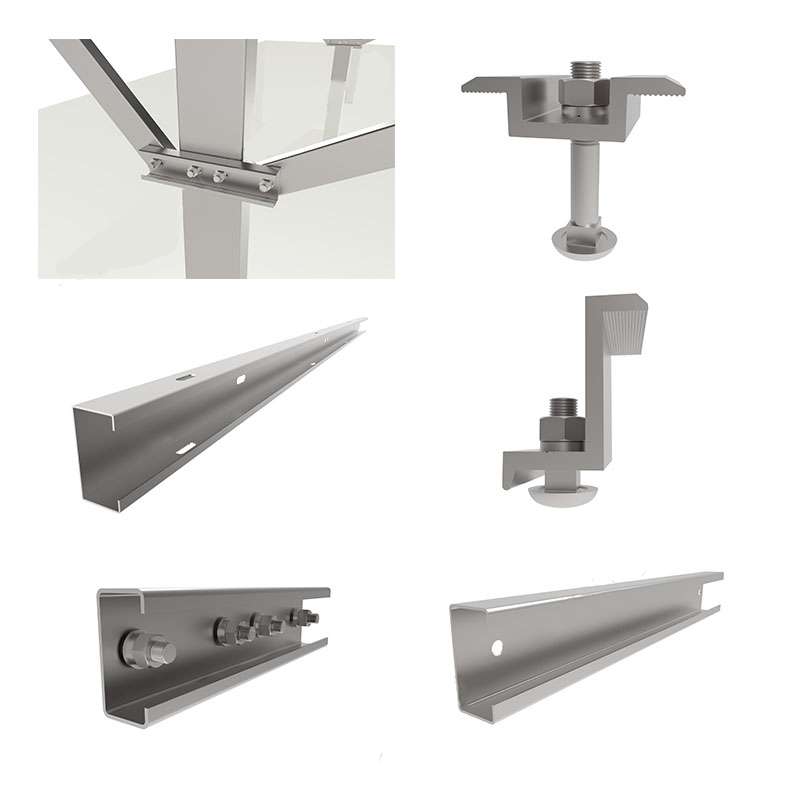

INSTALLATION INSTRUCTIONS
1. Installation of carbon steel tripod
Fix the base on the cement foundation with embedded bolts; Fix the hinge connection to the longitudinal beam. And install the longitudinal beam to the base; Install the rear support on the hinge connection and base.
2. Installing cross member
Place the beam opening upward on the longitudinal beam of the bracket, adjust the dimension distance, and use M10 * 25 bolts and plastic wing nuts to fix the rail on the longitudinal beam.
If the track length is not enough, multiple tracks can be connected in series as a whole using track connectors and four sets of M10 * 25 bolts.
3. Install components
Lay the module flat on the track, install the solar panel at the position designed in the scheme, and fix it with side pressure block assembly and medium pressure block assembly.
