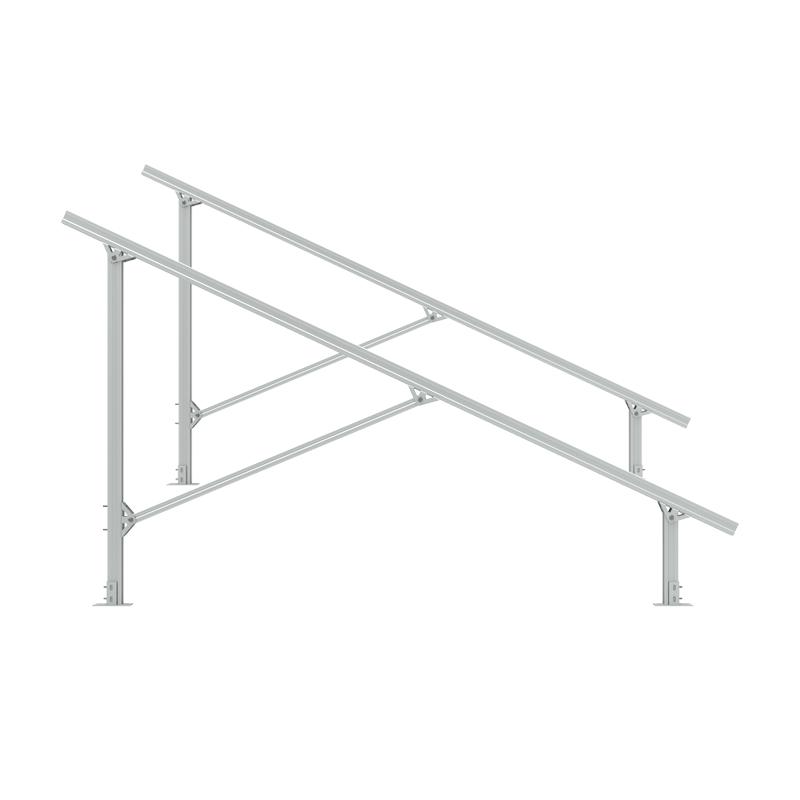

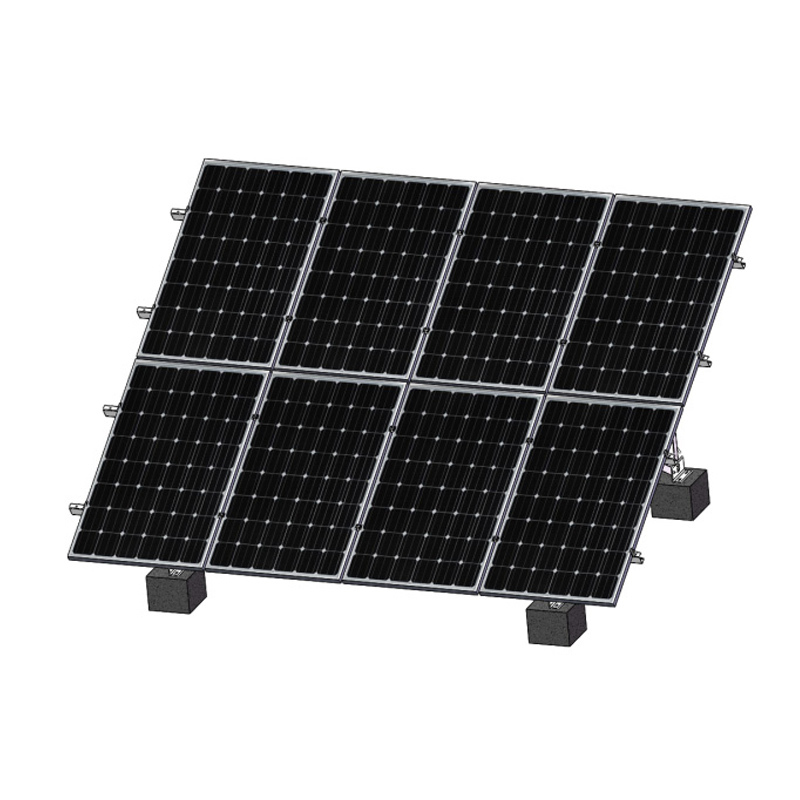

C-shaped Carbon Steel Ground Mount Solar Solution
Ground-mounted solar panels offer a range of benefits for homeowners and businesses. First and foremost, they can be positioned to capture the maximum amount of sunlight throughout the day, which translates into higher energy production. Unlike rooftop panels, ground-mounted panels are not limited by the size or orientation of the roof, allowing for greater flexibility in system design.
- Lester
- China
- 14 weekdays
- 2MW/Week
- Q235B
- 10 Years
- 25 Years
- Information
PRODUCT DETAIL
The characteristics of the solar ground racking system used for sloping ground:
1. Carbon steel structure (C-type) is cost-effective;
2. Outdoor galvanizing treatment work;
3. 10 year warranty, designed with a 25 year service life;
4. Ground screw support, height adjustable;
5. Easy to install, with fast, pre assembled packaging.
TECHNICAL PARAMETER | |
| Max wind speed | 52m/s |
| Snow load | 1.5KN/m2 |
| Span range | 0.6-3.2m |
| System installation angle deviation | ± 2 ° |
| Design standard | AS/NZS1170 ASCE 7-05 DIN1044 GB50797-2012 GB 50017-2003 Code for Design of Steel Structures, etc |
PERFORMANCE PARAMETER | |
| Installation site | Flat roof or horizontal ground |
| Main material | Q235B |
| Fastener material | SUS304 or hot-dip galvanized steel |
| Applicable components | Framed or frameless |
| Applicable layout method | vertical or horizontal |
| Warranty period | 10 years |
INSTALLATION INSTRUCTIONS

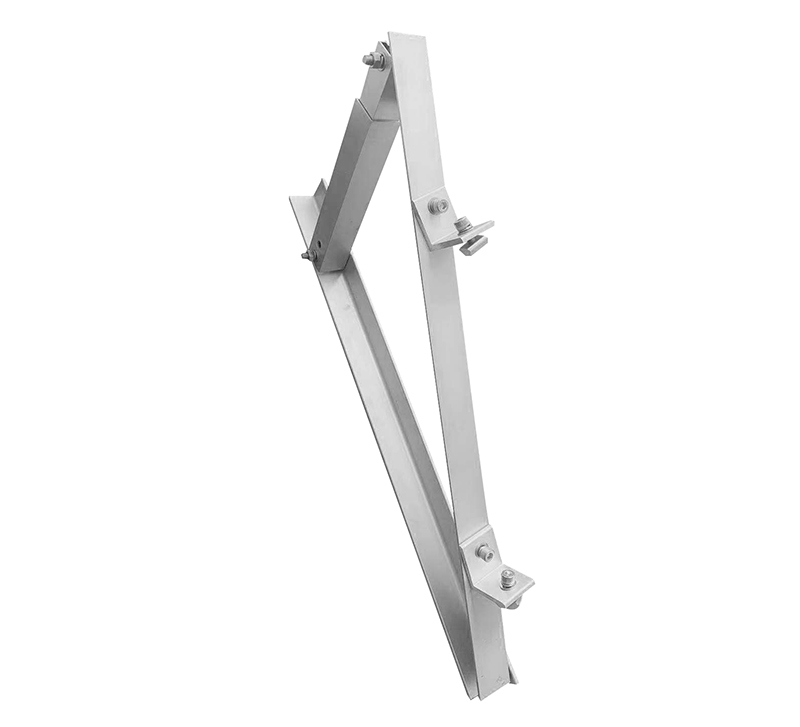

1. Install carbon steel bracket
Fix the base on a cement foundation with embedded bolts. Unfold the pre installed bracket and install it on the base.

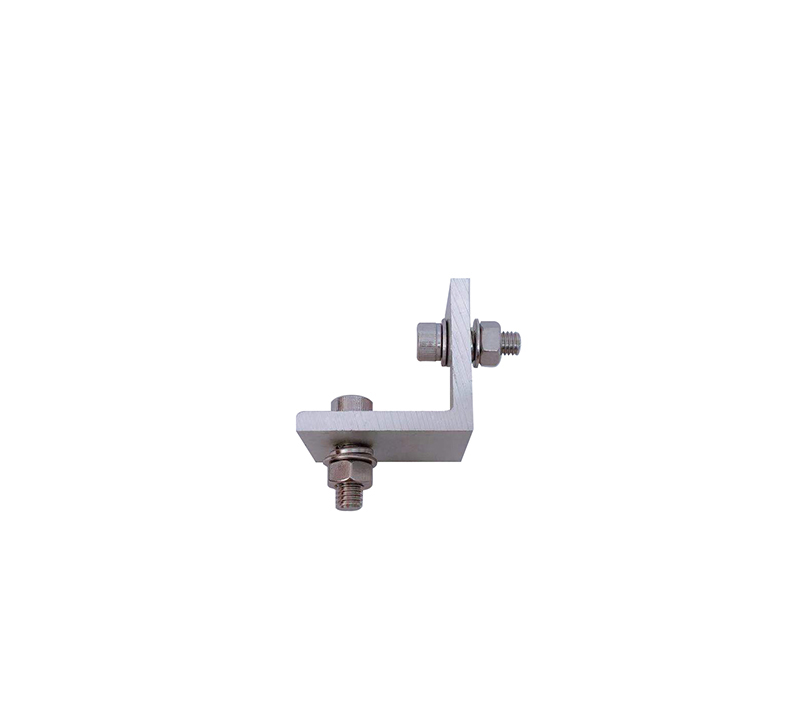

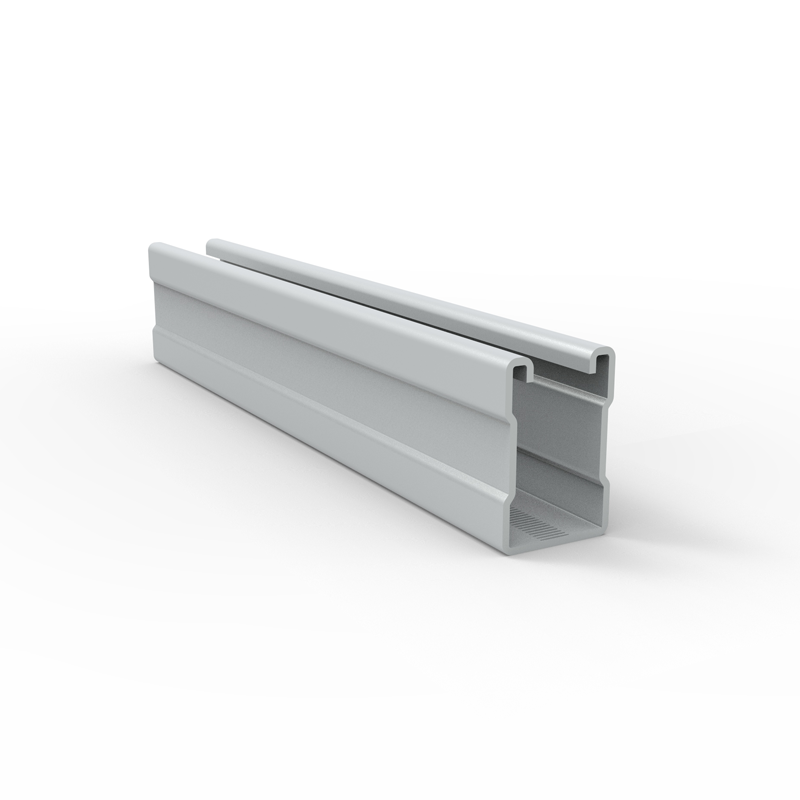

2. Install purlins
Install the purlin support plate onto the carbon steel bracket before installing the purlin; Place the purlin flat on the bracket (with the opening side facing upward) and fix it on the purlin support plate.
If the length of purlins is insufficient, it is possible to connect multiple purlins into a whole using purlin connectors.
The effect diagram of installing purlins is as follows：

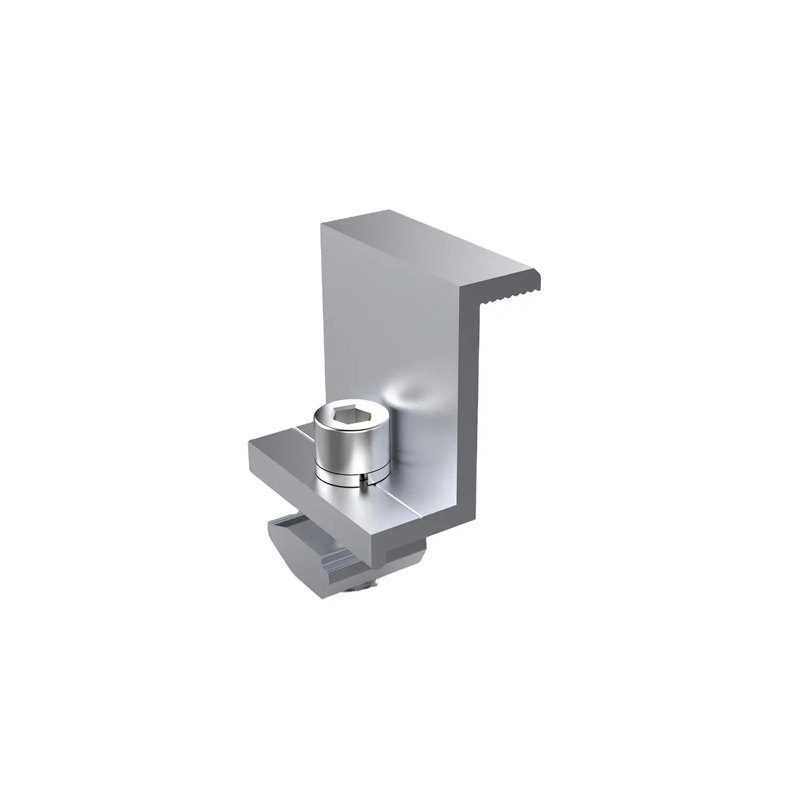

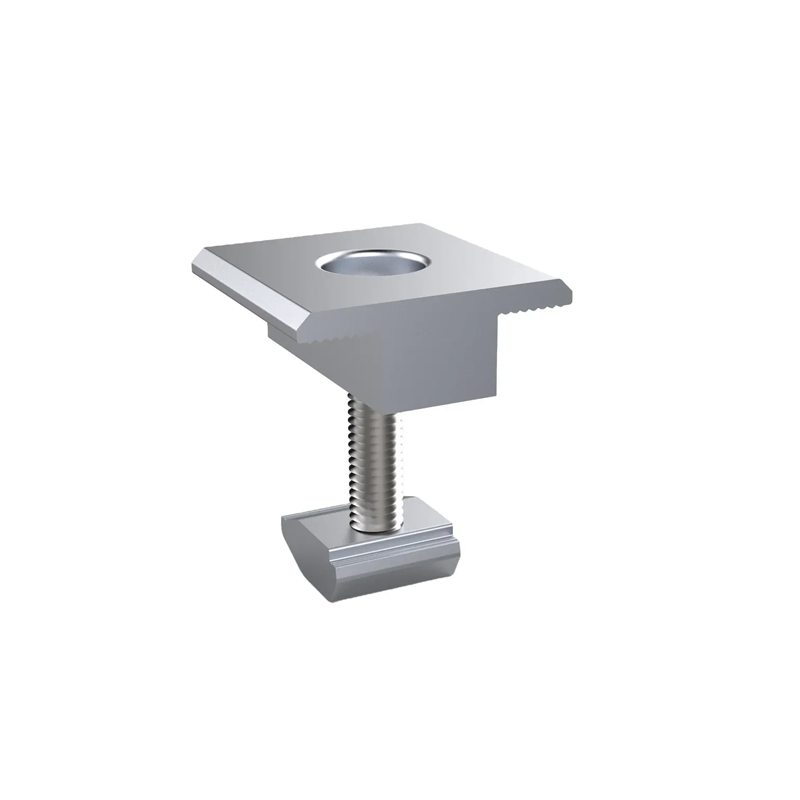

3. Install components
Lay the module flat on the track, install the solar panel at the position designed in the scheme, and fix it with side pressure block assembly and medium pressure block assembly.
